BW Jigs - Lock Jig - 26mm Radius Plates
- Brands BW Jigs
- Product Code: RP1026 26mm Radius Plates
- Availability: In Stock
Price £14.40In Stock
- Ex. VAT: £12.00

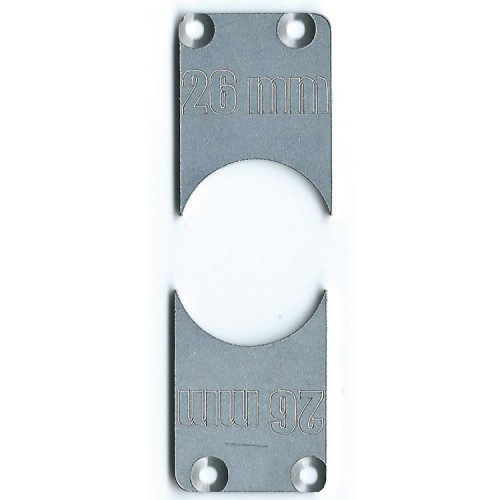

26mm Radius Plates to suit the BW Jigs Lock Jig
Radius plates are used for the lock faces with rounded ends.
Use the chart below to determine the size you need.
| Lock Width (mm) | Cutter Size (mm) | Guide Bush Size (mm) | Radius Plate Size (mm) |
| 20 | 12 | 16 | 24 |
| 20 | 12 | 17 | 25 |
| 21 | 12 | 16 | 25 |
| 21 | 12 | 17 | 26 |
| 22 | 12 | 16 | 26 |
| 22 | 12 | 17 | 27 |
| 23 | 12 | 16 | 27 |
| 23 | 12 | 17 | 28 |
| 24 | 12 | 16 | 28 |
| 24 | 12 | 17 | 29 |
| 25 | 12 | 16 | 29 |
| 25 | 12 | 17 | 30 |
| 26 | 12 | 16 | 30 |
| 26 | 12 | 17 | 31 |
| 27 | 12 | 16 | 31 |
| 27 | 12 | 17 | 32 |
| 28 | 12 | 16 | 32 |
