BW Jigs - Lock Jig - 31mm Radius Plates
- Brands BW Jigs
- Product Code: RP1031 31mm Radius Plates
- Availability: In Stock
Price £14.40In Stock
- Ex. VAT: £12.00

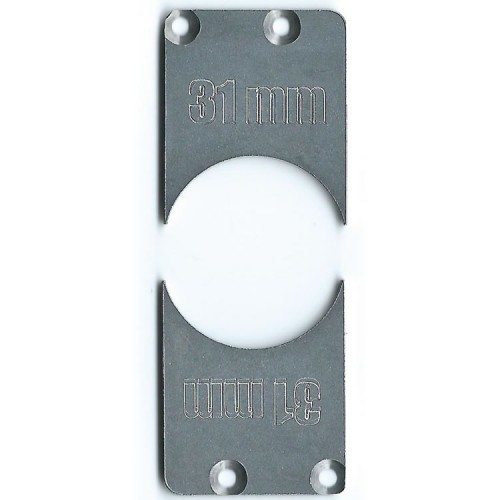

31mm Radius Plates to suit the BW Jigs Lock Jig
Radius plates are used for the lock faces with rounded ends.
Use the chart below to determine the size you need.
| Lock Width (mm) | Cutter Size (mm) | Guide Bush Size (mm) | Radius Plate Size (mm) |
| 20 | 12 | 16 | 24 |
| 20 | 12 | 17 | 25 |
| 21 | 12 | 16 | 25 |
| 21 | 12 | 17 | 26 |
| 22 | 12 | 16 | 26 |
| 22 | 12 | 17 | 27 |
| 23 | 12 | 16 | 27 |
| 23 | 12 | 17 | 28 |
| 24 | 12 | 16 | 28 |
| 24 | 12 | 17 | 29 |
| 25 | 12 | 16 | 29 |
| 25 | 12 | 17 | 30 |
| 26 | 12 | 16 | 30 |
| 26 | 12 | 17 | 31 |
| 27 | 12 | 16 | 31 |
| 27 | 12 | 17 | 32 |
| 28 | 12 | 16 | 32 |
